One-sided vs Two-sided Test

One-sided vs Two-sided RDMA: Implementation & Benchmark API

We implement a benchmark set that allows us to measure throughput (Mops) and bandwidth (GiB/s) for: - One-sided RDMA READ - One-sided RDMA WRITE - Two-sided SEND/RECV

The framework can tune message size, iteration count, and in-flight window/recv depth to see how performance scales.

Build

$ cd docs/code_examples/code/one_side_vs_two_side
$ gcc bench_server_broadcom.c -o bench_server_bench_server_broadcom -lrdmacm -libverbs
$ gcc bench_client_broadcom.c -o bench_client_broadcom -lrdmacm -libverbs

Server API

./bench_server <port> [--mode read|write|send] [--msg N] [--iters N] [--recv-depth N]
- --mode: read exposes a buffer for client RDMA READ; write exposes a buffer for client RDMA WRITE; send preposts receives to accept SENDs. - --msg: message size (bytes). - --iters: total operations to expect. - --recv-depth: number of receives preposted in SEND mode (must cover client window).

Client API

./bench_client <server_ip> <port> [--mode read|write|send] [--msg N] [--iters N] [--window N]
- --mode: read issues one-sided RDMA READs; write issues one-sided RDMA WRITEs; send does two-sided SENDs. - --msg: message size (bytes); must not exceed server-advertised buffer. - --iters: total operations to issue. - --window: outstanding WRs allowed in flight (match server recv-depth in SEND mode).

Test results (CPU RAM)

We would like to explore the impact of message size on MOPS and bandwidth for one-side and two-side RDMA.

We test the difference between write and send with two machines connected with CoRE.

We iterate on the message size from 32 to 8192 bytes.

Also it is important to note that the queue depth (window) has a great impact on the results as they allow the number of operations in flight. We test both window=64 and window=512 to understand how the system would perform in a shallow or deep queue.

Here's our results:

experiment mode msg window iters mops gib
msg_sweep write 32 64 200000 3.9 0.12
msg_sweep send 32 64 200000 3.92 0.12
msg_sweep write 64 64 200000 3.9 0.23
msg_sweep send 64 64 200000 3.92 0.23
msg_sweep write 128 64 200000 3.94 0.47
msg_sweep send 128 64 200000 3.85 0.46
msg_sweep write 256 64 200000 3.87 0.92
msg_sweep send 256 64 200000 3.9 0.93
msg_sweep write 512 64 200000 3.88 1.85
msg_sweep send 512 64 200000 3.84 1.83
msg_sweep write 1024 64 200000 3.93 3.75
msg_sweep send 1024 64 200000 3.87 3.69
msg_sweep write 2048 64 200000 3.83 7.31
msg_sweep send 2048 64 200000 3.8 7.25
msg_sweep write 4096 64 200000 3.97 15.16
msg_sweep send 4096 64 200000 3.76 14.36
msg_sweep write 8192 64 200000 3.64 27.77
msg_sweep send 8192 64 200000 3.64 27.76
msg_sweep write 16384 64 200000 1.8 27.54
msg_sweep send 16384 64 200000 1.8 27.41
msg_sweep write 32768 64 200000 0.93 28.53
msg_sweep send 32768 64 200000 0.93 28.52
msg_sweep write 65536 64 200000 0.48 29.11
msg_sweep send 65536 64 200000 0.48 29.1
msg_sweep write 131072 64 200000 0.24 29.39
msg_sweep send 131072 64 200000 0.24 29.39
msg_sweep write 262144 64 200000 0.12 29.52
msg_sweep send 262144 64 200000 0.12 29.48
msg_sweep write 524288 64 200000 nan nan
msg_sweep send 524288 64 200000 0.06 29.64
msg_sweep write 1048576 64 200000 0.03 29.65
msg_sweep send 1048576 64 200000 nan nan
msg_sweep write 256 512 200000 3.92 0.93
msg_sweep send 256 512 200000 3.83 0.91
msg_sweep write 512 512 200000 3.86 1.84
msg_sweep send 512 512 200000 3.86 1.84
msg_sweep write 1024 512 200000 3.88 3.7
msg_sweep send 1024 512 200000 3.88 3.7
msg_sweep write 2048 512 200000 3.92 7.47
msg_sweep send 2048 512 200000 3.91 7.46
msg_sweep write 4096 512 200000 3.87 14.75
msg_sweep send 4096 512 200000 3.88 14.8
msg_sweep write 8192 512 200000 3.68 28.1
msg_sweep send 8192 512 200000 3.65 27.86
msg_sweep write 16384 512 200000 1.89 28.87
msg_sweep send 16384 512 200000 1.89 28.86
msg_sweep write 32768 512 200000 0.96 29.25
msg_sweep send 32768 512 200000 0.96 29.25
msg_sweep write 65536 512 200000 nan nan
msg_sweep send 65536 512 200000 0.48 29.46
msg_sweep write 131072 512 200000 0.24 29.56
msg_sweep send 131072 512 200000 0.24 29.56

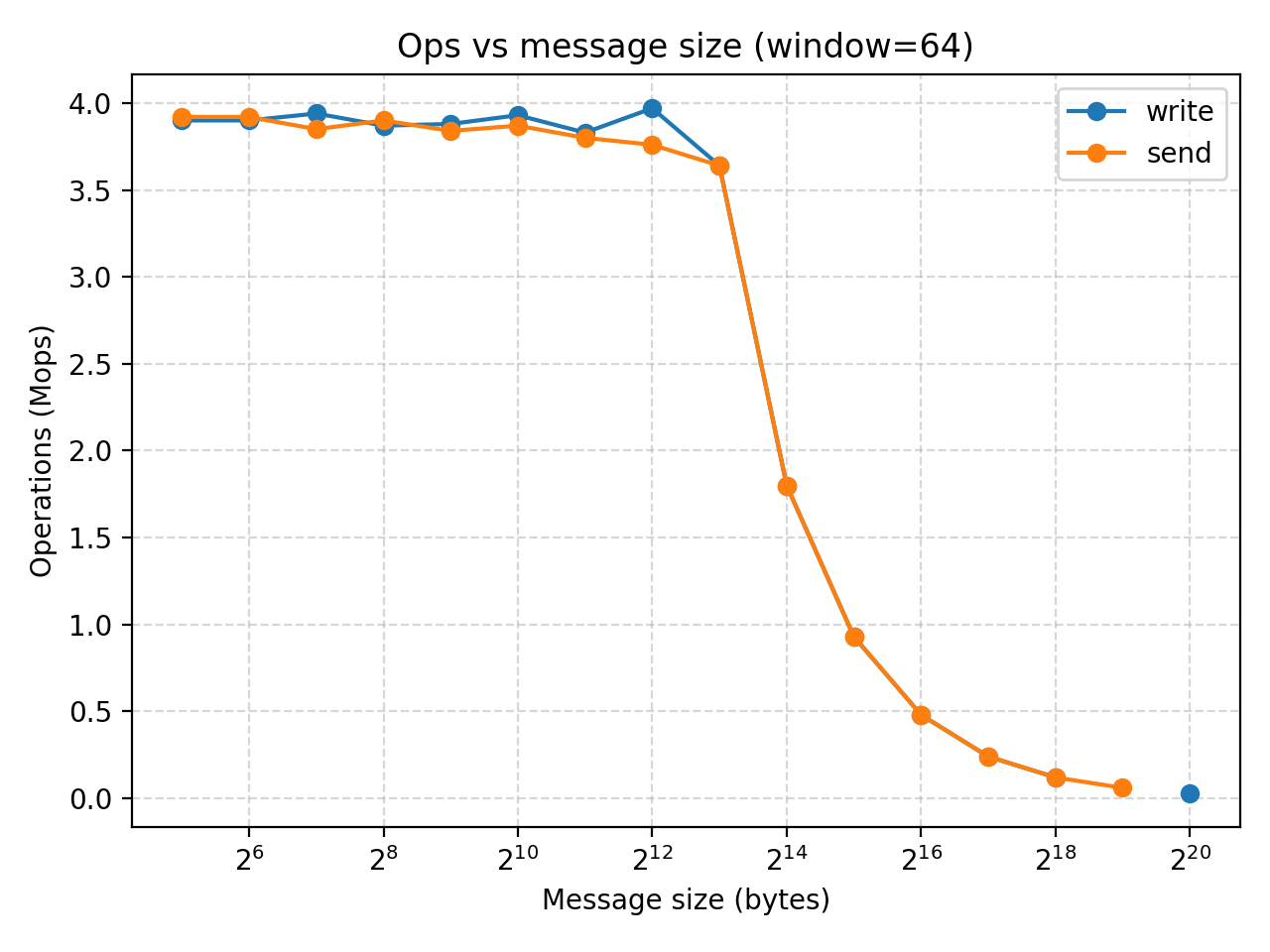

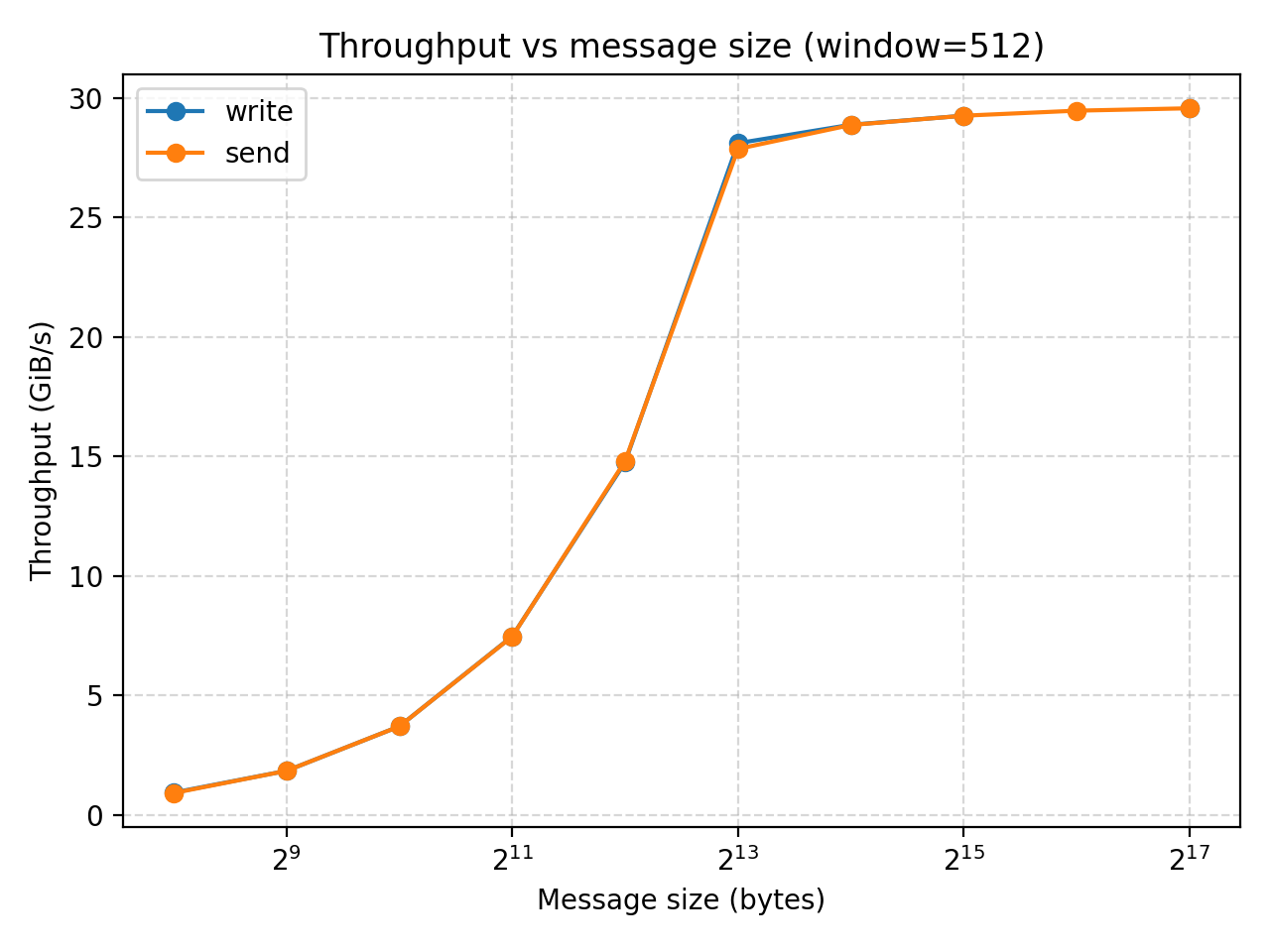

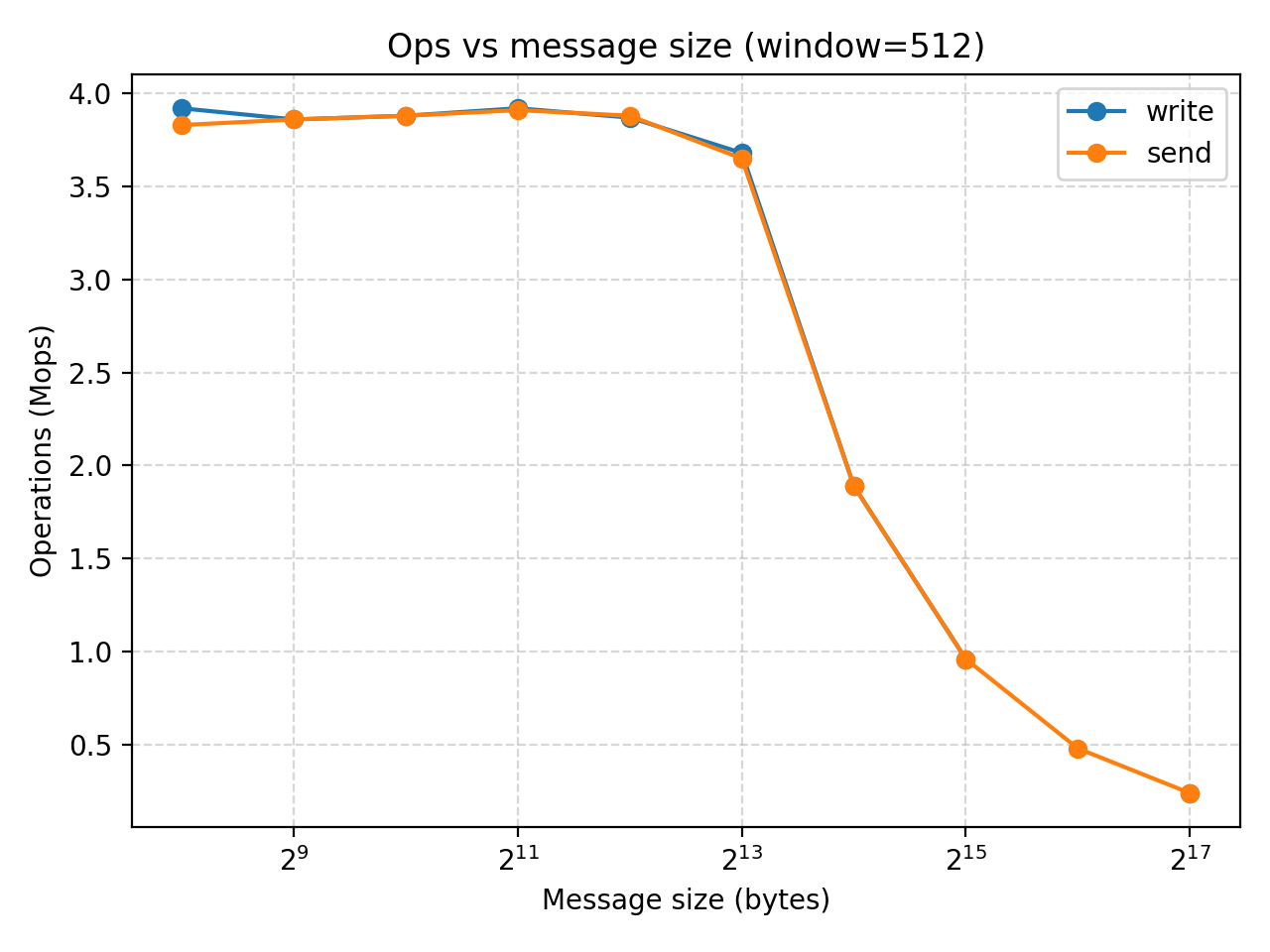

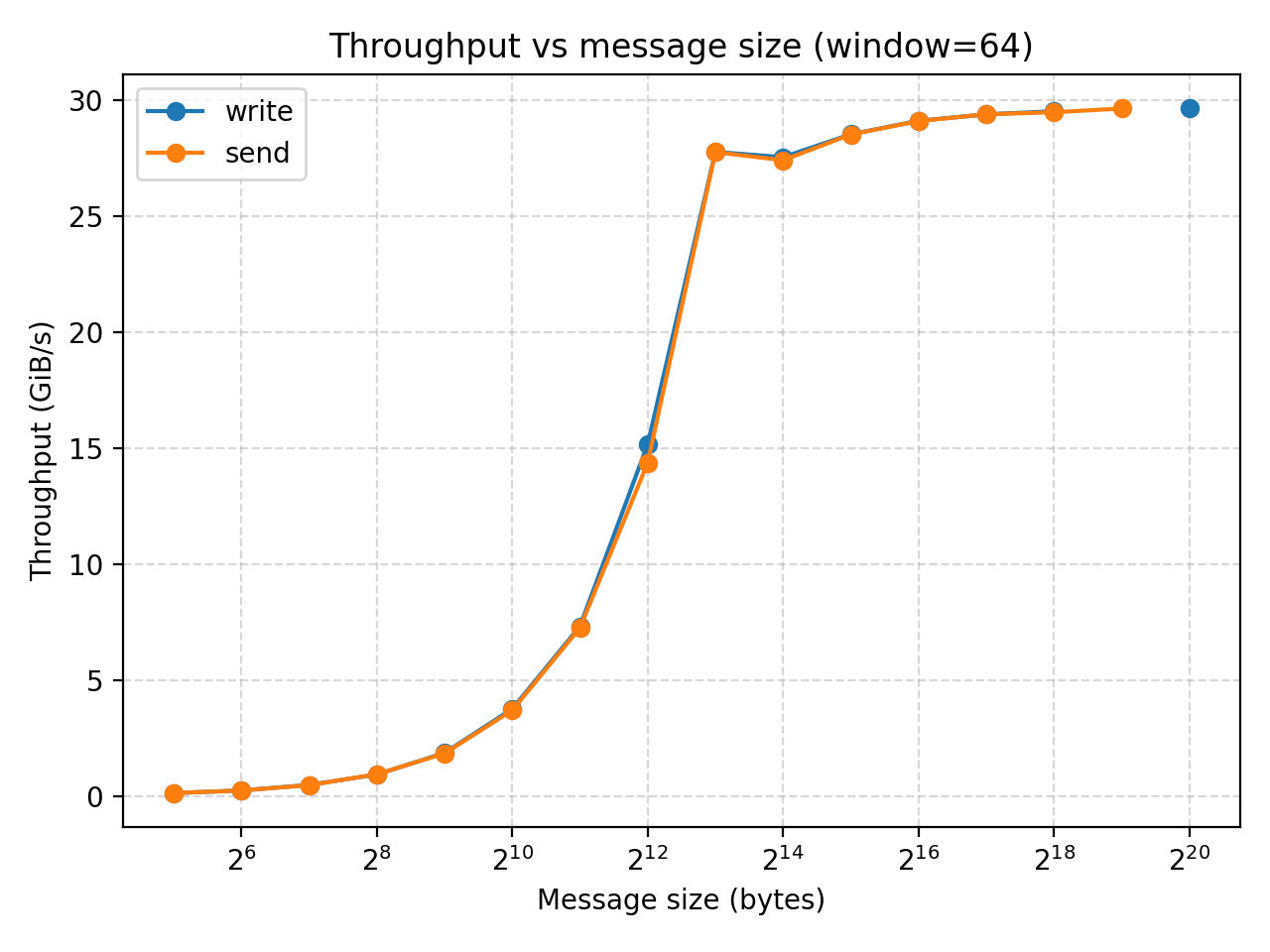

Result analysis (CPU)

Regardless of window size, both settings show that when you initially increase the message size, it has not much impact of MOPS while increasing the throughput. However, once we reach a message size of relatively $2^13$ bytes (8KB), any further increase of message size would not increase the throughput while significantly decreases MOPS.

The experiment also shows that while window size could be a limitation when its very small, it is large enough, further increasing it would not affect the performance.

Test results (GPU RAM)

This tutorial is mainly for GPU RDMA, so we also test the performance when using GPU memory.

experiment mode msg window iters mops gib
msg_sweep_gpu write 256 64 200000 3.84 0.92
msg_sweep_gpu send 256 64 200000 3.73 0.89
msg_sweep_gpu write 512 64 200000 3.79 1.81
msg_sweep_gpu send 512 64 200000 3.74 1.78
msg_sweep_gpu write 1024 64 200000 3.81 3.63
msg_sweep_gpu send 1024 64 200000 3.81 3.63
msg_sweep_gpu write 2048 64 200000 3.84 7.32
msg_sweep_gpu send 2048 64 200000 3.84 7.32
msg_sweep_gpu write 4096 64 200000 3.83 14.6
msg_sweep_gpu send 4096 64 200000 3.83 14.62
msg_sweep_gpu write 8192 64 200000 3.55 27.09
msg_sweep_gpu send 8192 64 200000 3.62 27.6
msg_sweep_gpu write 16384 64 200000 1.89 28.8
msg_sweep_gpu send 16384 64 200000 1.89 28.79
msg_sweep_gpu write 32768 64 200000 0.96 29.23
msg_sweep_gpu send 32768 64 200000 0.96 29.23
msg_sweep_gpu write 65536 64 200000 0.48 29.45
msg_sweep_gpu send 65536 64 200000 0.48 29.44
msg_sweep_gpu write 256 512 200000 3.82 0.91
msg_sweep_gpu send 256 512 200000 3.81 0.91
msg_sweep_gpu write 512 512 200000 3.84 1.83
msg_sweep_gpu send 512 512 200000 3.84 1.83
msg_sweep_gpu write 1024 512 200000 3.82 3.64
msg_sweep_gpu send 1024 512 200000 3.89 3.71
msg_sweep_gpu write 2048 512 200000 3.82 7.28
msg_sweep_gpu send 2048 512 200000 3.78 7.2
msg_sweep_gpu write 4096 512 200000 3.83 14.61
msg_sweep_gpu send 4096 512 200000 3.86 14.71
msg_sweep_gpu write 8192 512 200000 3.63 27.67
msg_sweep_gpu send 8192 512 200000 3.65 27.86
msg_sweep_gpu write 16384 512 200000 1.89 28.82
msg_sweep_gpu send 16384 512 200000 1.89 28.81
msg_sweep_gpu write 32768 512 200000 0.96 29.22
msg_sweep_gpu send 32768 512 200000 0.96 29.23
msg_sweep_gpu write 65536 512 200000 0.48 29.44
msg_sweep_gpu send 65536 512 200000 0.48 29.44

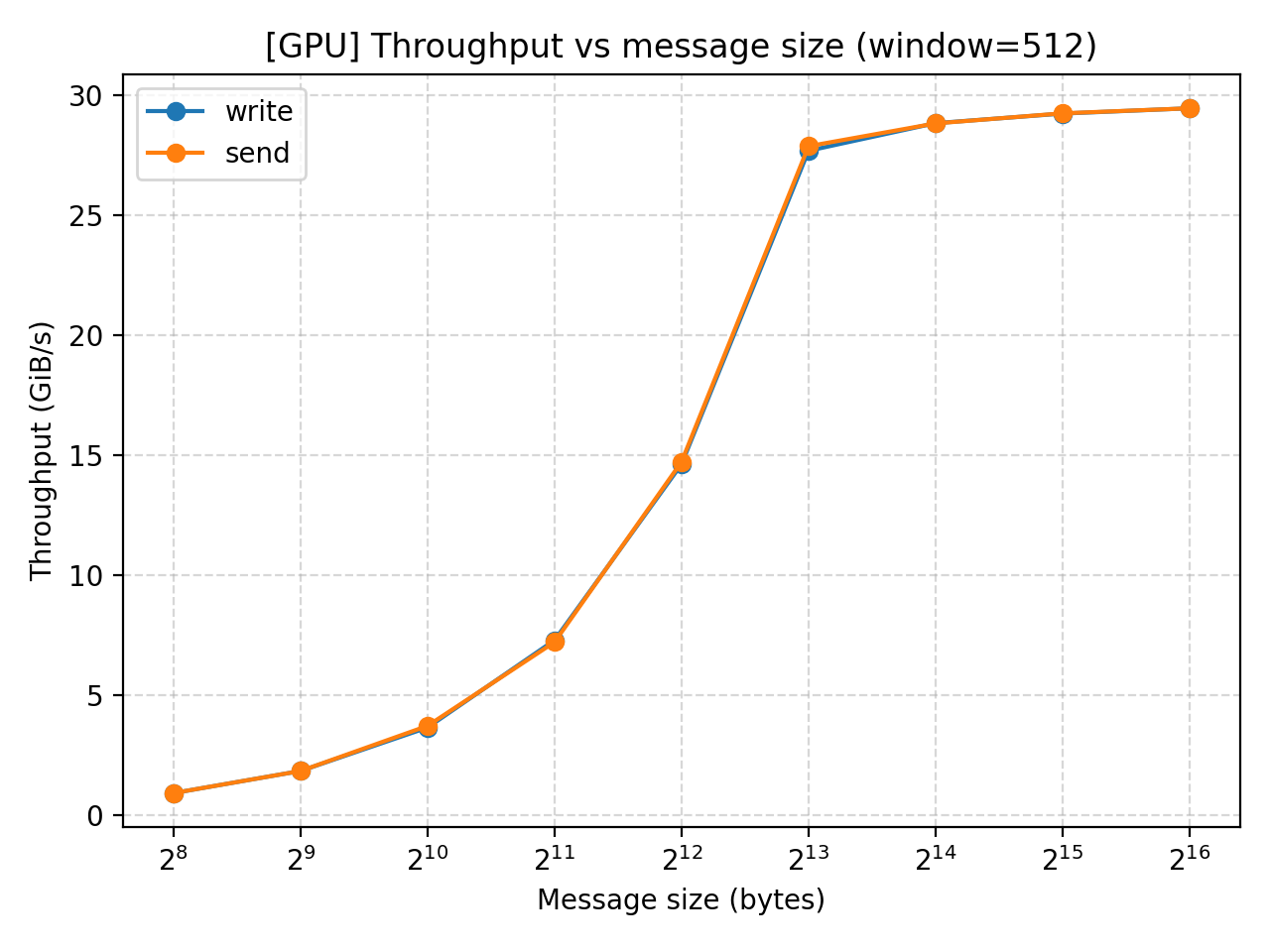

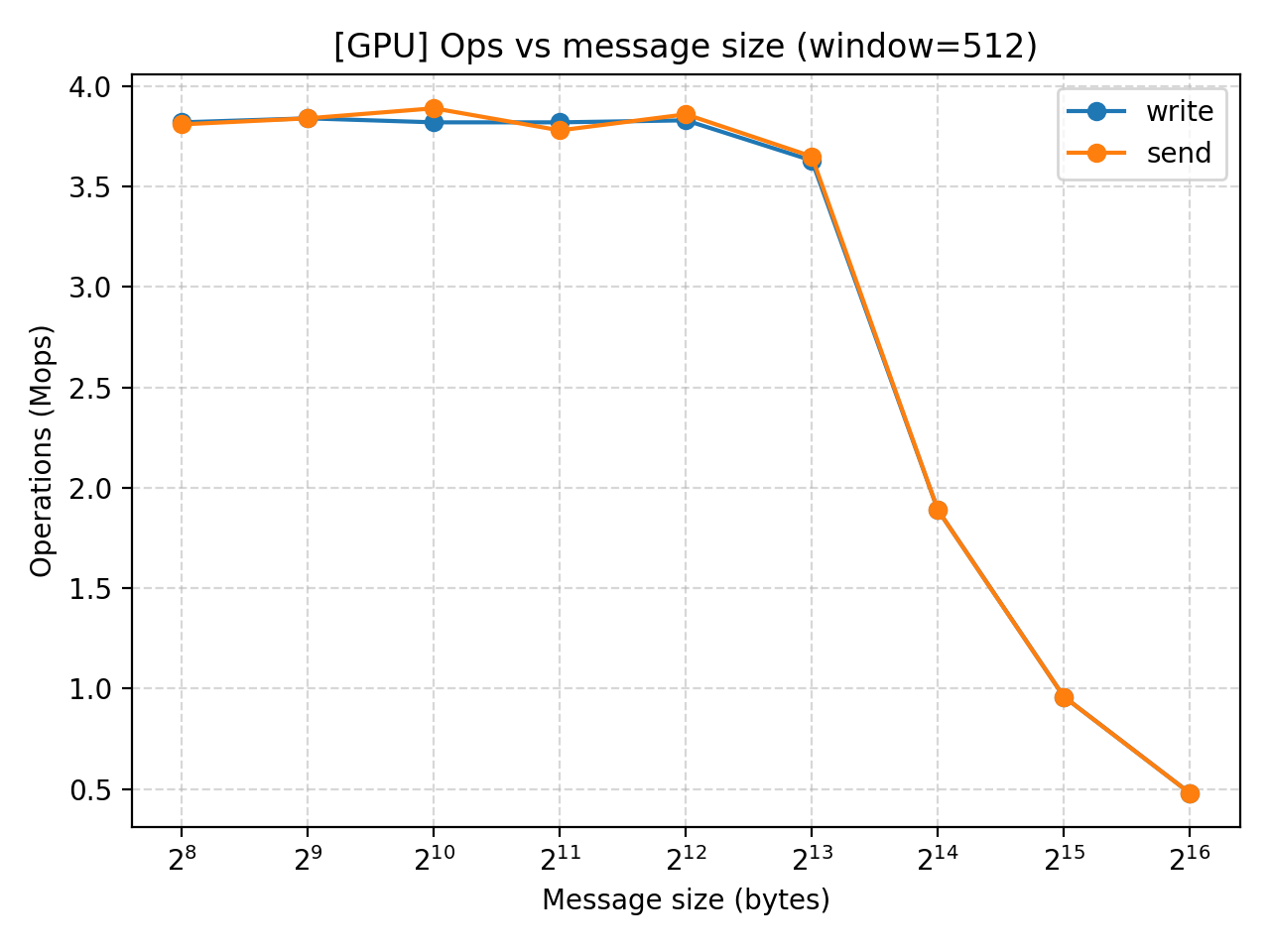

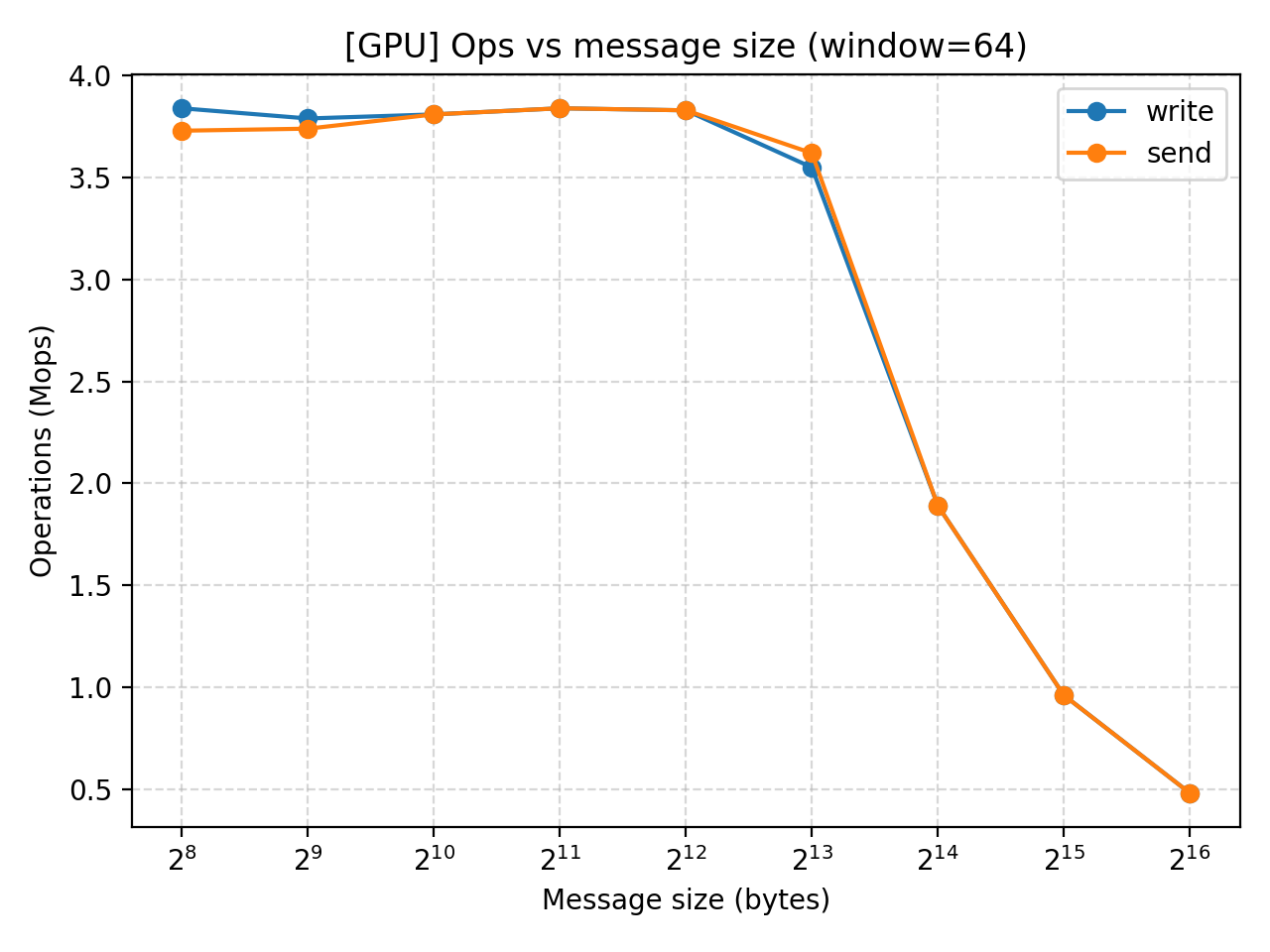

Result analysis (GPU)

Similar performances exhibit in our GPU test. The throughput increase with message size but the effect eventually converges at $2^13$. MOPS does not change until that point when it starts to drop as we increase message size even further.

Conclusion

“Our experiments reveal an interesting finding: with a window size of 64 or 256, the send and write operations show no statistically significant performance difference when using Our Broadcom RoCE NIC that runs at 400 Gb/s (theoretical peak ≈ 46.6 GiB/s). Our best GPU-direct RDMA benchmark reaches about 30 GiB/s, i.e., ~64% of the line rate. To further increase the performance, we need to optimized the QPs and polling.

Thus, we arrive at a somewhat counterintuitive conclusion that, under our experimental setup, one-sided and two-sided operations exhibit no observable performance difference.
